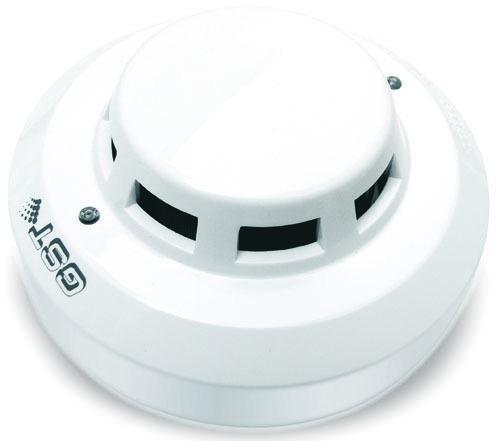

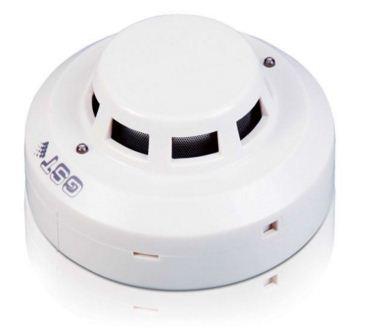

Smoke Detector GST DC-9102

The DC-9102 Innovative Conventional Optical Smoke Detector is the ideal device for most application due to its excellent digital response to a wide variety of different type of smoke patterns. The unit meets the sensitivity requirement of EN 54 part 7, European Standard Unique and pleasing with a low profile design, unobtrusive to complement modern building designs.
The unit incorporates an intelligent processor that provides digital signaling. The integral microprocessor analyses the signal according to integrated algorithm of analyzing fire, then confirms these pattern with the pre-programmed fire scenarios and smoke patterns for a faster and safer response.

Features and Benefits :

• Built in microprocessor

• Built in magnetic test switch

• Algorithm maps for faster response and false alarm rejection

• With drift compensation to ensure constant sensitivity

• Sensing chamber for exceptional dust proof ability and LED for 360º vision

• Built in remote indicator output

• Unique Low profile design

• EN54 compliance

Technical Specifications :

    Operating Voltage: 12VDC~28 VDC

• Standby Current: =60µA

• Alarm Current: 10mA=I=30mA

•  Fire LED:Red, Flash periodically (2s~4s per once ) in normal state, and illuminate in alarming.

• Remote indication output:Directly connecting with remote indicator(built in 1k resistor in series, output voltage is 5V); don’t illuminate when in polling; illuminate in alarming.

• MAX. ripple voltage: 2V(peak to peak value)

• Alarm Reset: Instant power down (2s Min, 1.0VDC Max)

• Power-up Time: =10s

• Wiring: Two wire, polarity-sensitive

• Ingress Protection Rating: IP23

• Relative Humidity: =95%, non condensing

• Material and Color of Enclosure: ABS, white (RAL 9016)

• Dimension: Diameter: 100mm Height: 45mm (without base)

• Mounting Hole Spacing: 45mm~75mm

• Weight: about 110g

Brand - GST
Part Number: DC-9102
Description: Innovation Conventional Optical
Smoke Detector
Weight / Kg.: 0.123
