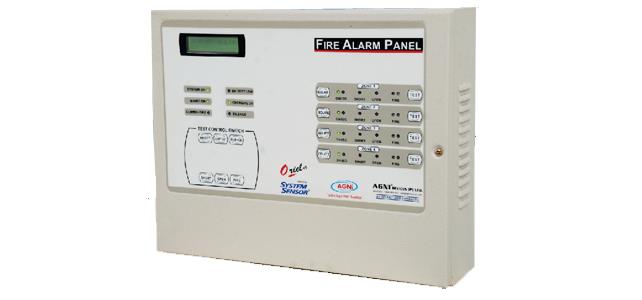

Fire Alarm Panel / Agni Oriel-8Z – Conventional Fire Panel

Agni Oriel-8Z – Conventional Fire Panel – The Oriel series of Microprocessor fire alarm panels are an upgraded version that provides a reliable and cost-effective solution to fire detection, from small to large size installations which have 2, 4, 6, and 8 & could go up to 60 zones of selecting models and features. These units have been designed to offer high standards of performance, reliability and quality and comply with IS 2189 : 1999 and tested by the ERTL (N). The Oriel series panels are especially suited for small offices, workplaces, and small & high-rise buildings.

STANDARD FEATURES

• Complies to IS 2189:1999 and Tested by ERTL (N) & System Sensor.

• 2 x 16 character backlit LCD. (4 x 20 characters, optional)

• 64 / 128 / 256 Events logging facility with real-time clock and keypad. (optional)

• 2 Wire Communication facility via RS 485 Port. (For Repeater Panel) (optional)

• BMS attachment

• Lamp test features.

• Complete with integral power supply and battery charger for SMF battery.

• NO/NC contacts for both fire and fault.

• Switches to enable onboard operation.

• LCD and LED Indication for open, short circuit, Isolate, and Fire in each zone.

• Maximum nos. of Detectors in each zone is 25
