OXYGEN BOOSTER MODEL: OxySteer

AGG Oxysteer electric booster pump is used for pumping 100% pure oxygen. It allows users to fill oxygen cylinders to 310 Bar from a low-pressure supply cylinder. Due to its innovative seal design and cooling method, Oxysteer fill oxygen cylinders to near ambient temperature. Our boosters also operate at a very low 77dBA noise level.

Oxysteer is completely oil-free and use only two low friction dry seals. The seals can be replaced in about 20 minutes by anyone, with only a few tools. The piston guide is the only other part that requires regular maintenance. This is done by simply sliding it off the piston.

Oxysteer AGG gas booster requires a source of gas of at least 20 Bar to function properly. Its purpose is to use the available gas pressure in supply cylinders to fill smaller cylinders to higher pressures. This will not improve the quality of the source gas nor will it add contaminants. Although the booster requires a minimum of 20 Bar to function properly, any greater inlet pressure will reduce the fill time of the receiving cylinder.

TECHNICAL SPECIFICATION:-

• Electrically driven

• Use up to 310 Bar for oxygen

• 10-1 boost ratio

• Two stage design

• S/S heads & pistons

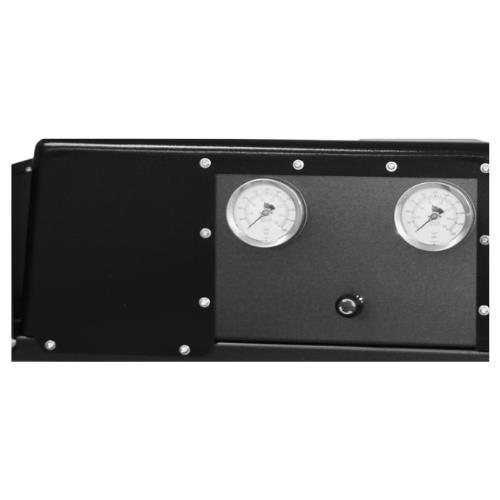

• S/S 4” inlet & outlet gauges

• S/S tubing and fittings

• S/S by-pass valve

• Bronze 10 micron inlet filter

• Safety Relief Valve

• Seals rated at 690 Bar

• Non-lubricated drive section

• Sealed bearings

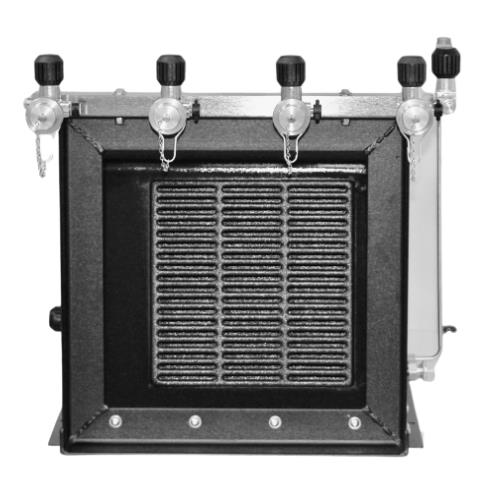

• Cooling fan and finned aftercooler

• Inlet shut off valve

• Magnetic starter sealed inside a Enclosure

• Adjustable pressure switch

• Hour meter

• (1) inlet port

• (4) outlet port

• Approx. weight: 75 kg.

• Approx. dim 42” x 20” x 21”
