15 tonne Hydraulic Punch Die Set :

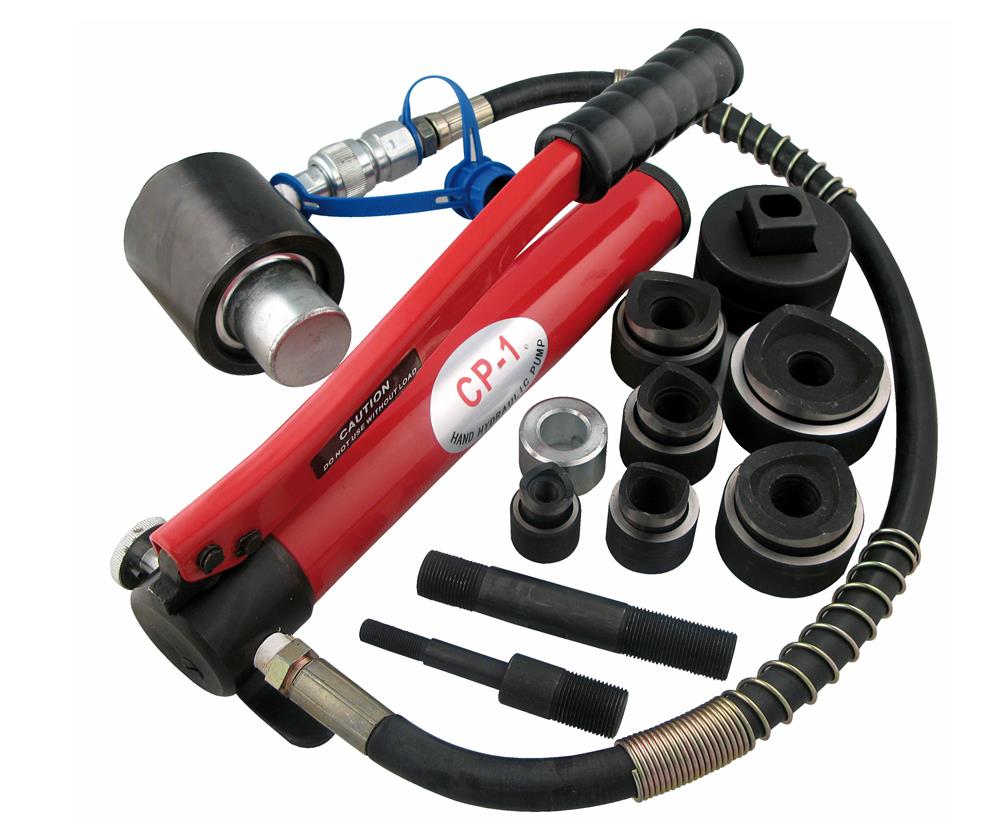

The 15 tonne Hydraulic Punch Die Set is a complete die punch set including a pump and various dies. The unit is an invaluable tool for punching round holes in steel plate up to 3.2 mm thick depending on the hole diameter. It has an output of 15 tonnes and a ram stroke of 25 mm.
Technical Data :
Dimensions (of kit box): L 410 x W 240 x H 135mm
Weight of kit: 15.2kg
Die sizes: Round - 22mm (0.866"), 27.6mm (1.086"), 34.1mm (1.343"), 42.7mm (1.68"), 48.7mm (1.917"), 60.5 (2.381"), Square - 32mm x 32mm
Weight: 380g
Plate Thickness Cutting :
Brass = 3.5mm to 4.0mm
Aluminum = 4.0mm
Copper = 4.0mm
Mild Steel = 3.2mm

The unit is supplied in a plastic box with pump, ram, die sets, accessories and operating instructions.
