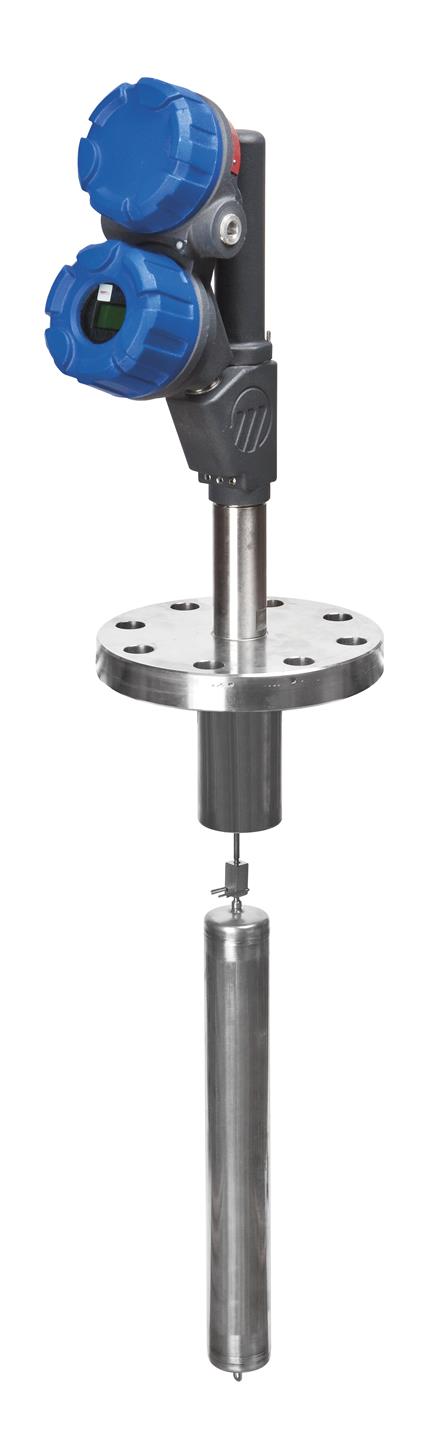

Magnetrol  Electronic Modulevel Flanged Cage Buoyancy Level Transmitter

X = 1020mm level range/centreline
1/2" NPT ball valve (316 SS) vent and drain
Housing: Cast Aluminium, (2) 3/4" NPT elec. entries, TYPE 4X (IP66)
Input/Output: 11-36 VDC / 4-20 mA(HART), SIL 2/3 Certified
Chamber Material: 316/316L SS
Process Connection: 1 1/2" ANSI RF 300# ANSI(316/316L SS)
Connection Location: SIDE/SIDE
Level Range in(mm): 48.00 (1219)
SS Tags: LT-3162
MAKE -MAGNETROL
MODEL NUMBER - XE3F-EP4C-S1A
TECHNICAL SPECIFICATION :-
BODY/CAGE MATERIAL - 316/316L SS
CONSTRUCTION - INDUSTRIAL
BODY/CAGE STYLE - EXTERNAL FLANGED CAGE
CONNECTION ARRANGEMENT SIDE/SIDE
CONNECTION SIZE/TYPE -1 1/2" ANSI RF 300# ANSI(316/316L SS)
NORMAL RATING -720 psig(49.7 barg)@100°F(38°C)
RATING @ MAXIMUM TEMP. - 465 psig(32.1 barg)@550°F(288°C)[Not for use in condensing app.]
SPECIFIC GRAVITY RANGE -0.55 - 1.09
LEVEL RANGE- 48.00 (1219)
DISPLACER MATERIAL - 316/316L SS
SPRING MATERIAL -Inconel X750
TRIM MATERIAL- 316/316L SS
TRANSMITTER :-
INPUT POWER  - 11-36 VDC
OUTPUT SIGNAL -  4-20 mA(HART), SIL 2/3 Certified
DISPLAY  - DIGITAL  METER
MOUNTING -INTEGRAL
MAXIMUM LOOP LOAD - 620 ohms @ 24 VDC
LINEARITY (INDEPENDENT)  - +/- 0.50% of full span (non-interface service)
REPEATABILITY -  +/- 0.20% of full span (non-interface service)
DIAGNOSTIC - ALARM 3.6, 22 mA or HOLD selectable (meets NAMUR NE 43) - SIL 2

ENCLOSURE :-
MATERIAL Aluminium - A356T6 (<0.20% Cu)
ELECTRICAL ENTRY  - Dual, 3/4" NPT
APPROVAL AGENCY - ATEX Intrinsically Safe
APPROVAL LEVEL  - Ex II 1 G Ex ia IIC T4; EN 60079-0, -11, -26, -27; 94/9/EC
INGRESS PROTECTION TYPE  - 4X, IP66
