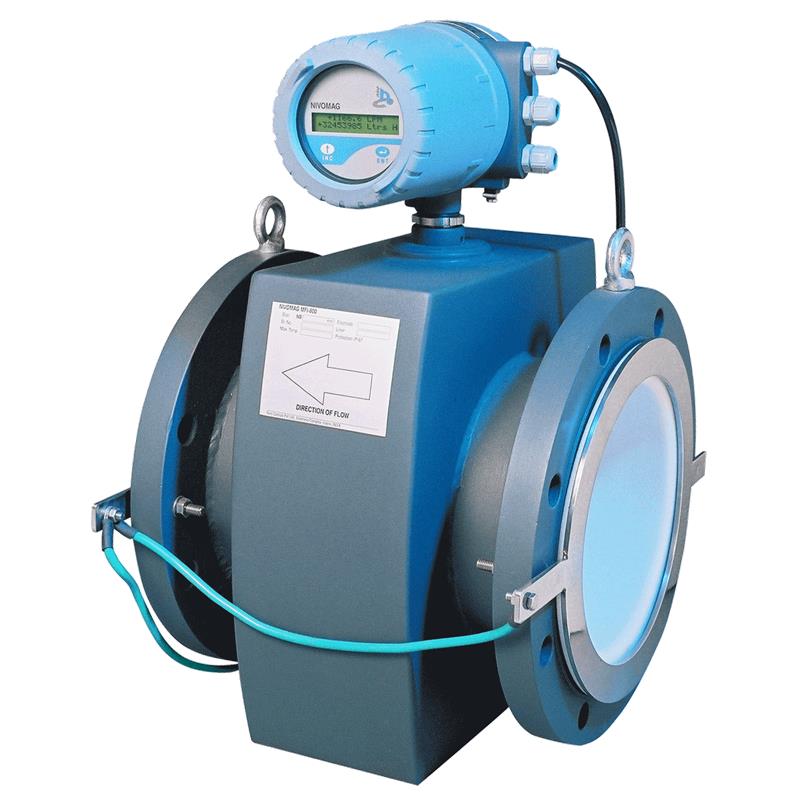

Microprocessor Based Electromagnetic Flow Meter

Compact instrument version with measuring sensor (Primary) and Amplifier integrated in one mechanical unit.

Flow Range : 0.5 m/sec to 10 m/sec
Minimum Conductivity : 5 µ S/cm.

Housing :
Sensor : Sheet Steel
Electronics : Cast aluminium
Protection : IP 67

Measuring Pipe :
Line Size : 15 mm
Measuring Pipe Material : SS 304
Measuring Pipe Flanges: Steel ASA 150 lbs
Lining Material : PTFE
Electrode Material : SS 316
Mains Supply : 90 Vac to 265 Vac, 50 / 60 Hz

Accuracy : ± 0.5% of flow rate.
Output : 4 to 20mA isolated 24Vdc pulse output (open collector) Programmable Relays (2 Nos.) RS 485
Display : 16 Character x 2 Lines LCD Alphanumeric Display for flow Rate, Totalizer, Diagnostic Messages
Totalizer : Forward & Reverse
Flow Alarms : High Flow & Low Flow Programmable throughout range
Flow Range : Programmable
Creep Suppression : Programmable
Empty Pipe Detection : Yes
